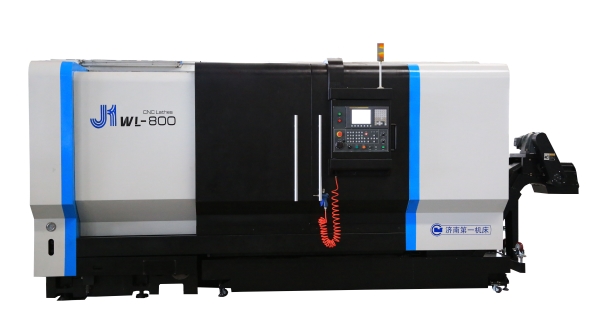

J1WL-800 CNC lathe with slant bed for machining aluminum wheel hub
View:
The machine tool has obvious advantages such as overall rigidity, high processing precision, large metal removal rate per unit time, good precision retention, high reliability, easy maintenance, and the like, and the application scope is particularly wide. Machine tools can be used as small and medium-sized batches of various types of processing and production, and can also be used together with other equipment.
J1VL-800 CNC Vertical Lathe Main Specifications Table (Standard Configuration)
|
項目Item |
J1WL-700 |
J1WL-800 |
|
******旋徑(mm)Max rotating diameter |
?700 |
?800 |
|
******加工直徑(mm)Max machining diameter |
?560 |
?680 |
|
標準加工輪圈(吋inch)Max diameter of wheel hub |
20 |
24 |
|
******加工輪圈寬(吋inch)Max width of wheel hub |
11 |
12 |
|
主軸轉速(rpm)Spindle speed |
2500 |
|
|
主軸鼻端形式Spindle nose |
A2-8 |
|
|
馬達出力(連續/30分)( kW)Motor power (continuous/30min) |
30/37 |
|
|
刀塔刀具數目Storage of turret |
12 |
|
|
X/Z軸行程(mm)Travel of X/Z axis |
300/620 |
360/770 |
|
X/Z軸快速移動速率(m/min)Rapid traverse rate of X/Z axis |
10/20 |
16/20 |
|
控制系統CNC system |
FANUC 0i-TF |
|
