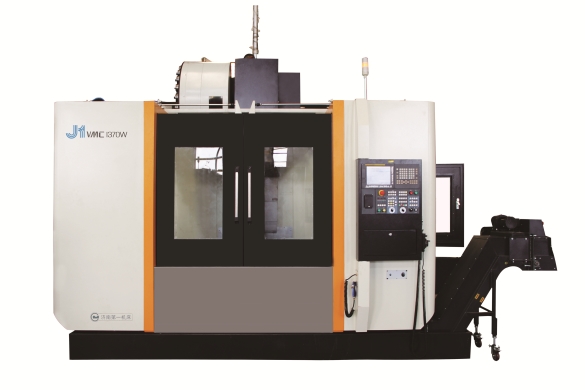

J1VMC1370W Precision Vertical Machining Center
View:
J1VMC1370W vertical machining center is a hard rail vertical machining center developed by Jinan No.1 Machine Tool Co., Ltd.; it adopts fixed-pillar layout, fully enclosed protection, and three-direction cast iron hardened guide rails, which is suitable for machining industry, especially It is a high rigidity, high efficiency, and precision product demanded by the mold manufacturing industry. J1VMC1370W vertical machining center is mainly used for rim processing to improve the spindle power and speed, increase the Z-direction space, and facilitate the installation of fixtures.
J1VMC1370W Precision Vertical Machining Center Main Specifications Table (Standard Configuration)
|
項目Item |
J1VMC1370 |
J1VMC1370W |
|
工作臺面積(長x寬)（mm×mm）Table size(LxW) |
1360x700 |
1400x700 |
|
主軸鼻端至工作臺距離Distance from spindle nose to table |
150-750 |
450-1150 |
|
主軸******轉速（r/min）Spindle speed |
8000 |
10000 |
|
主軸電機（KW）Spindle motor |
β15（ 15/18.5 kW） |
1PH8135（18.5 kW） |
|
主軸孔錐度Spindle taper |
7/24 |
|
|
主軸中心至立柱軌面距離 （mm）Distance From spindle center to column guide |
784 |
|
|
刀庫容量Magazine storage |
15 |
|
|
X/Y/Z移動范圍Travel of X/Y/Z axis |
1200(1300)/700/650 |
1300/700/700 |
|
X/Y/Z快速移動速度（m/min） Rapid traverse rate of X/Y/Z axis |
18/18/15 |
15/15/15 |
|
數控系統CNC system |
西門子828D |
|
