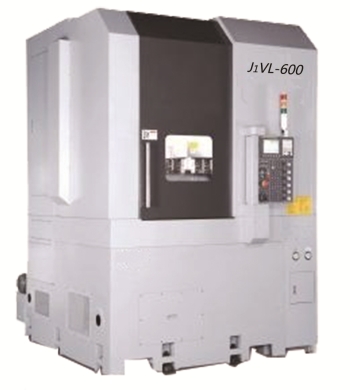

J1VL-600ST Brake Disc CNC Vertical Lathe
View:
J1VL-600/600ST CNC vertical lathe is a CNC vertical lathe with brake technology developed by our company. This series of machine tools adopts a modular design. The J1VL-600 meets the standard turning requirements of the single-blade of the brake disc, and can also meet the standard turning requirements of other parts. The J1VL-600ST adopts a horizontal cutter head + an opposing servo axis linkage upper knife holder, and the upper and lower knife holders. Both sides of the brake disc can be turned at the same time. The machine tool has obvious advantages such as good overall rigidity, high processing precision, large metal removal rate per unit time, good precision retention, high reliability, easy maintenance, and the like. The machine tool can be used as a high-volume, multi-variety machine, or it can be used together with other equipment. Widely used in the production of automobile parts and motorcycle parts.
J1VL-600ST Brake Disc CNC Vertical Lathe Main Specifications Table (Standard Configuration)
|
項目Item |
J1VWL-900DT |
J1VWL-900 |
|
******回轉直徑（mm）Max swing over bed |
Φ900 |
|
|
******切削直徑（mm）Max turning diameter |
Φ750（14-28.5吋inch） |
|
|
******切削高度（mm）Max turning height |
350（13吋inch） |
|
|
主軸轉速范圍（r/min）Spindle speed |
25～1800 |
|
|
主軸頭Spindle nose |
A2-11 |
|
|
X/Y/Z軸******行程（mm）Travel of X/Y/Z axis |
X1,X2:-15～+510/Z:550 |
|
|
X/Z軸快速移動（m/min）Rapid traverse rate ofX/Z axis |
16/16 |
|
|
主電機功率（kW）Spindle motor power |
45/55(選擇option60/75) |
37/45 |
|
刀架形式/刀位數Turret type/Numbers of tool |
立式Vertical6+6 |
立式Vertical6 |
|
數控系統CNC system |
FANUC 0i-MF |
|
